Site Visit

Site Putrajaya Site Office
Date 14-9-1999
Products HOKKIM HAMF-1 Integrated AMF Control Board
Switchboard Manufacturer Yuniletrik Sdn Bhd
Description Control panel for 70 KVA generator.
Comments
  1. At this site, it was found that the gen-set fail to start after being in operation for some time because the 8-pin base of the start relay has melted. The damaged units were replaced with a new base and a new relay. It is important to use good quality start relays and bases because the start circuit carries high current.
    It was discovered that the Mains Failed Timer Card (MFT-1) transistor C1815 was also damaged (open-circuit). A replacement MFT-1 was installed. With that the problem was resolved and the AMF board was able to function properly.
  2. After 3 months, the AMF board failed again. This time the MFT-1 Card was found not functioning properly because there was an induced voltage of 60VAC across terminals 11 & 12 of the HAMF-1. These are supposed to be volt-free contacts used for signaling the auto-start circuit. The 60VAC was induced because the wiring contractor used a four-core armored cable to connect to terminals 11 & 12. The balance 2 core of the cable was used for the battery-charger 240VAC power supply and the cable was run over a long distance. To solve this problem, the contractor was asked to run separate cables for power and signal.
Site Photos

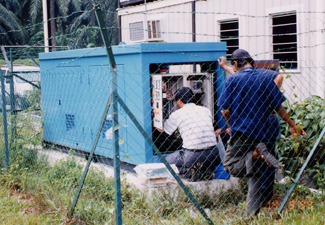

View of the Gen-Set

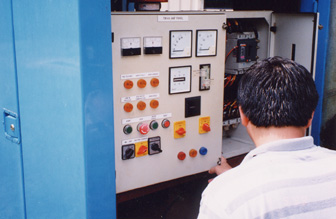

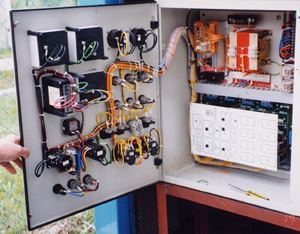

View of the panel board

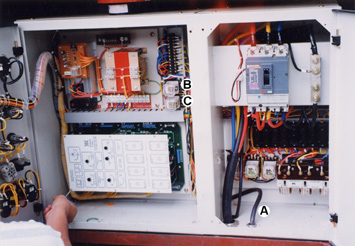

Closer view of the panel board and Hokkim Hamf
A = 4-Core Cable   B = Starter Relay   C = Solenoid Coil Relay
